CCD timing

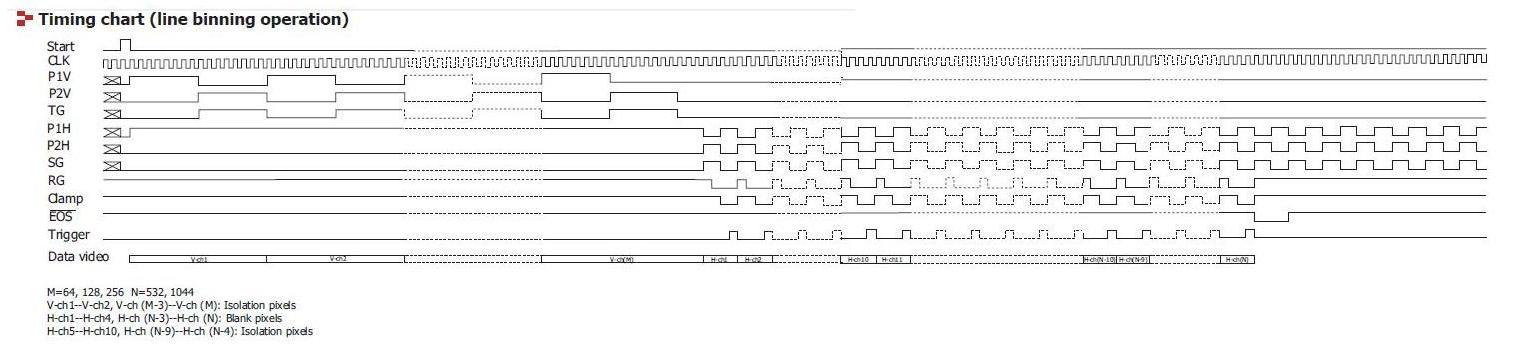

The Hamamatsu C7041 documentation shows the START signal triggering an integration (exposure + readout)
ending with an END-OF-SCAN signal:

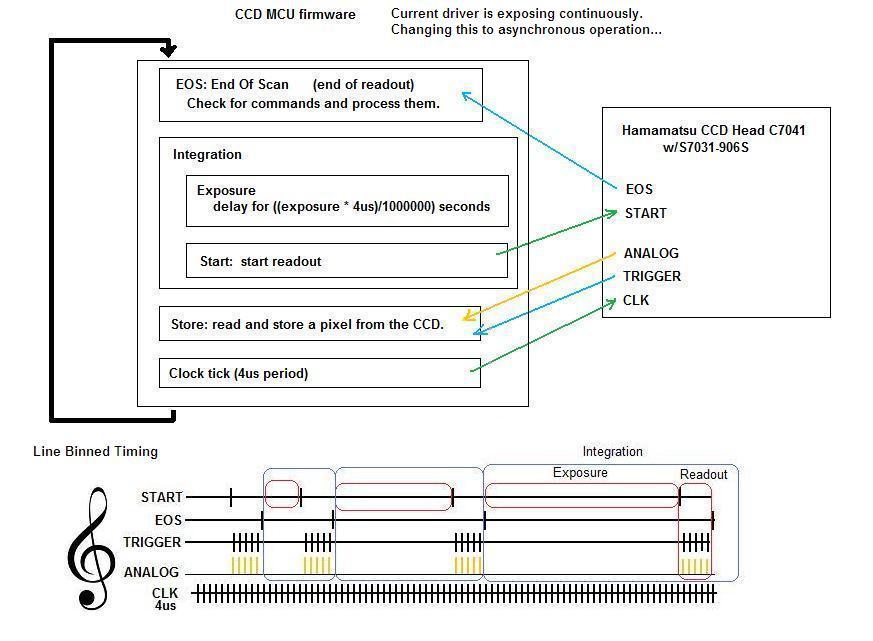

The current configuration based on a START signal triggering a readout.


I don't remember why I did it this way. Maybe because the Hamamatsu timing shown
above doesn't explain how determine when the readout should begin (exposure time
is not a setting on the head).

Probably because of this:

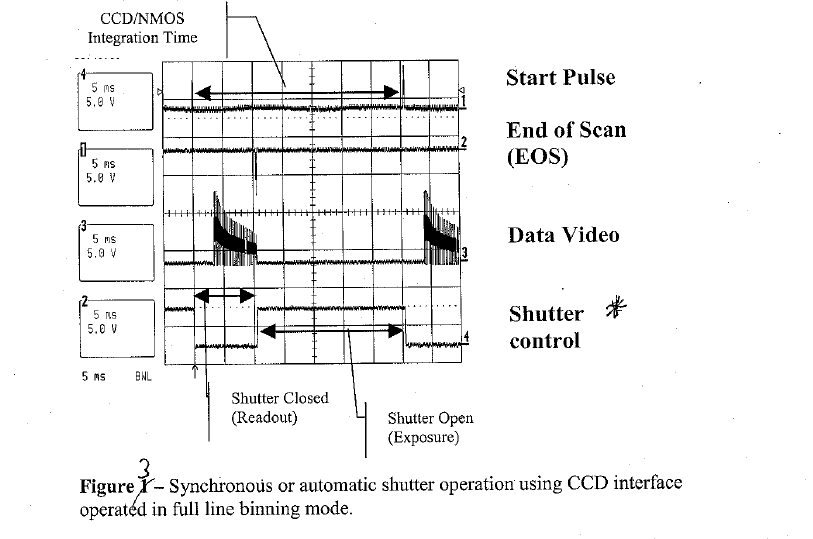

An older Hamamatsu manual (Image Sensors Development Kit Instruction Manual, March 2002)
shows a START signal appearing to initiate a readout after some kind of delay (vertical binning?)
during which the shutter is closed and following the readout is an exposure:


Changing the controller software to make single exposures...

Possibly useful information on operating the C7041 CCD head and S7031-1006S CCD can be found here:
  Marc Baril's thesis on Luminescence in Feldspars (dead link).
  Ocean Optics QE Pro Data Sheet

Hamamatsu:
  Image Sensors Product Selection
   S7031-906S  (sans integration time):
     line-binning mode:
	minium binning+readout time: 1303us
     area mode:
        minimum frame readout: 35ms
        (~28.5Hz sounds suitably fast for slit alignment)
