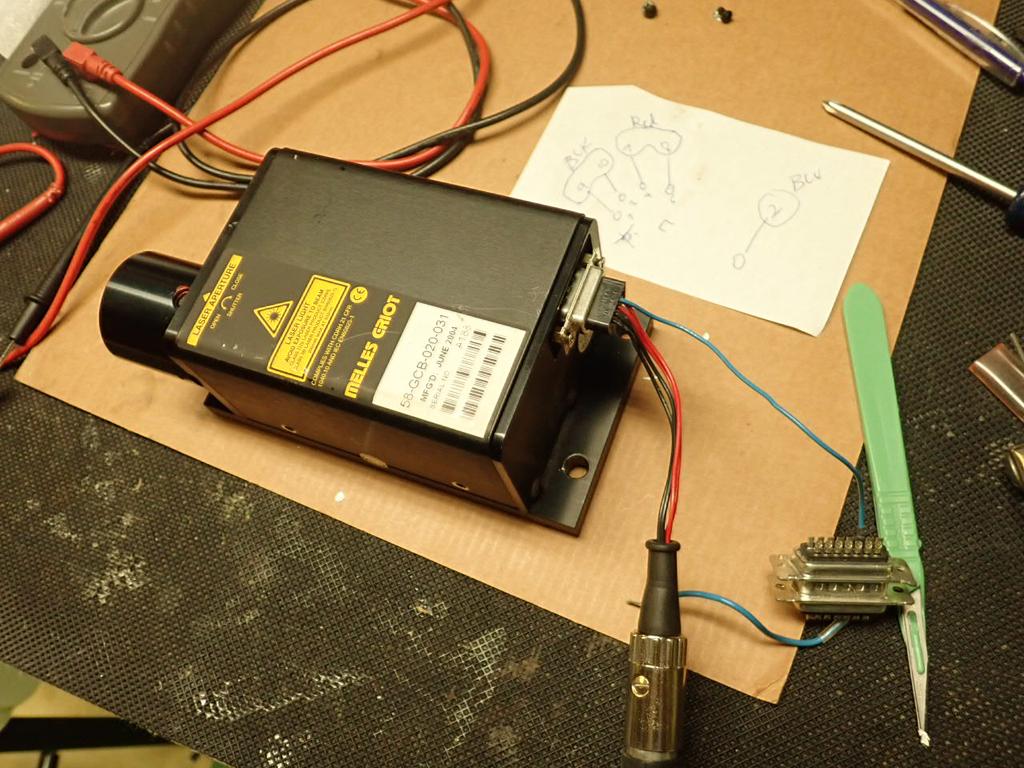

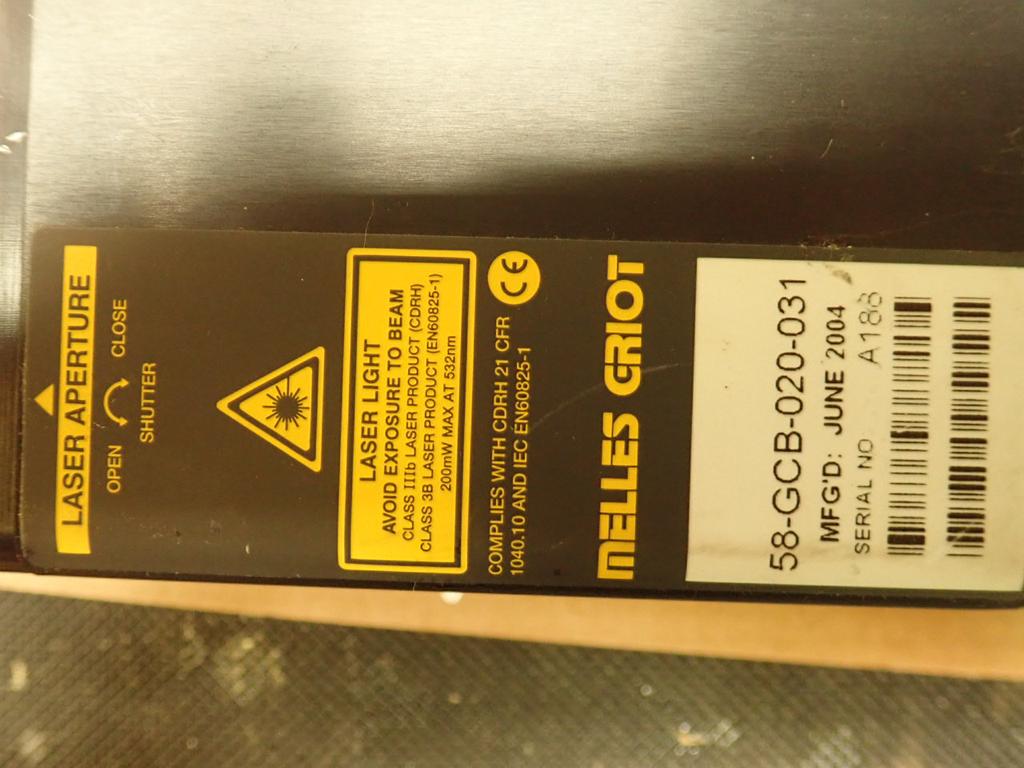

Melles-Griot 58-GCB-020-031 532nm 200mW TEC-cooled DPSS Laser
Melles-Griot 58-GCB

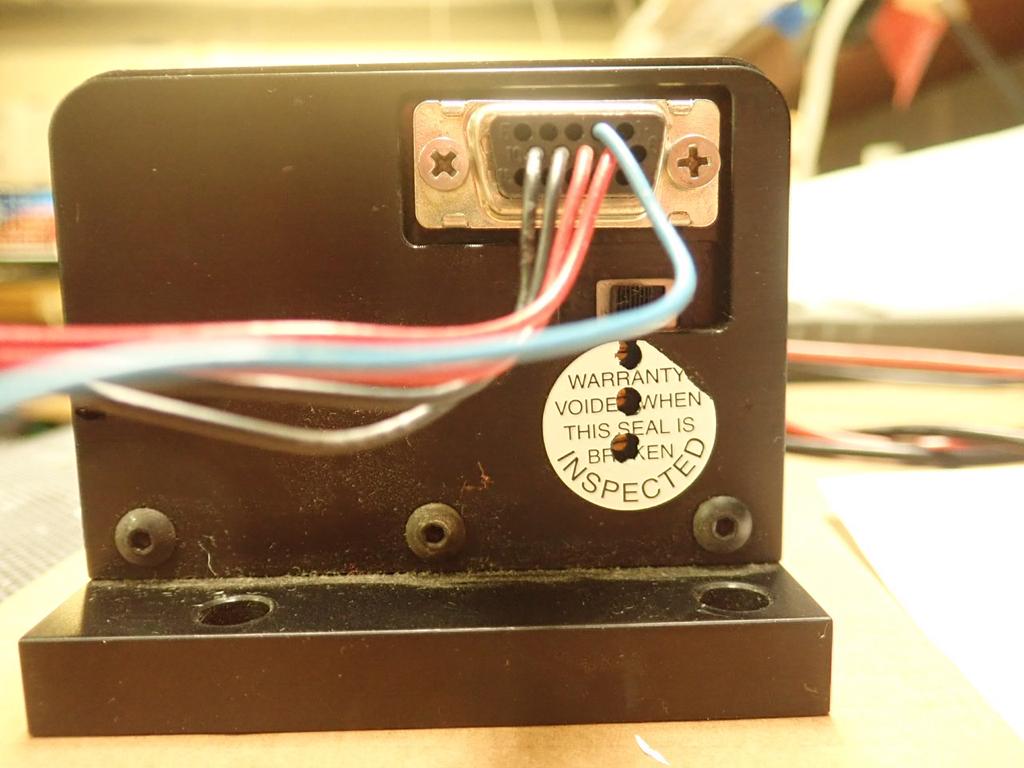

The warranty seals were all unbroken. The unit looks new.
The unit takes 30 seconds to "warm up" before a beam is emitted.

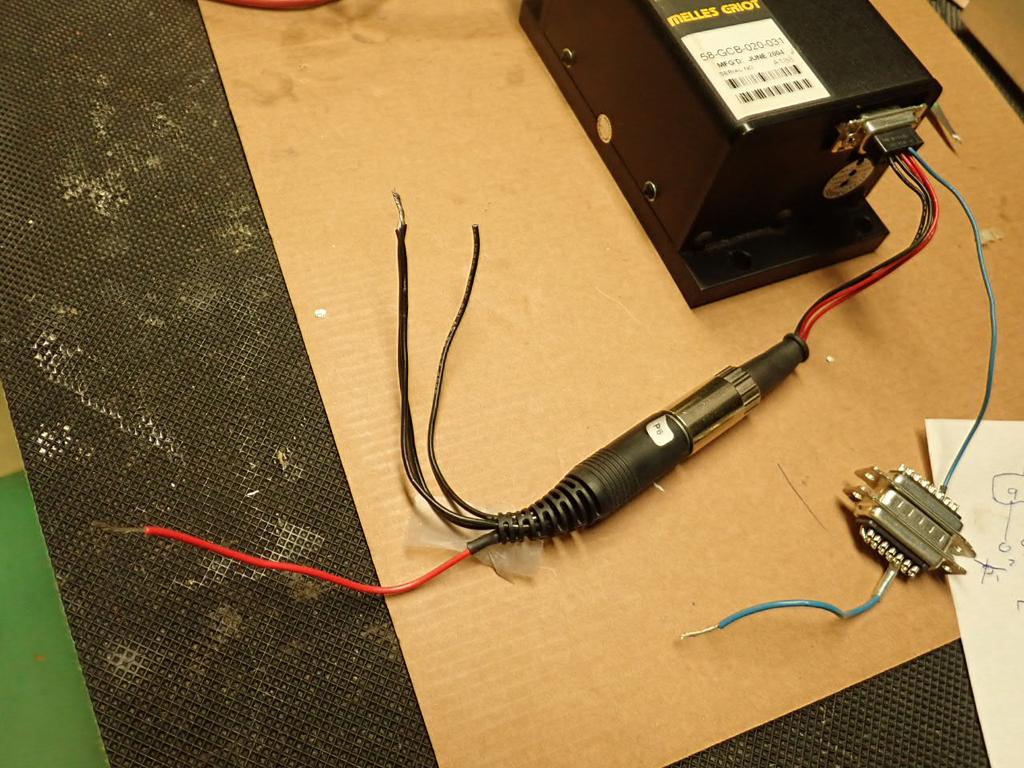

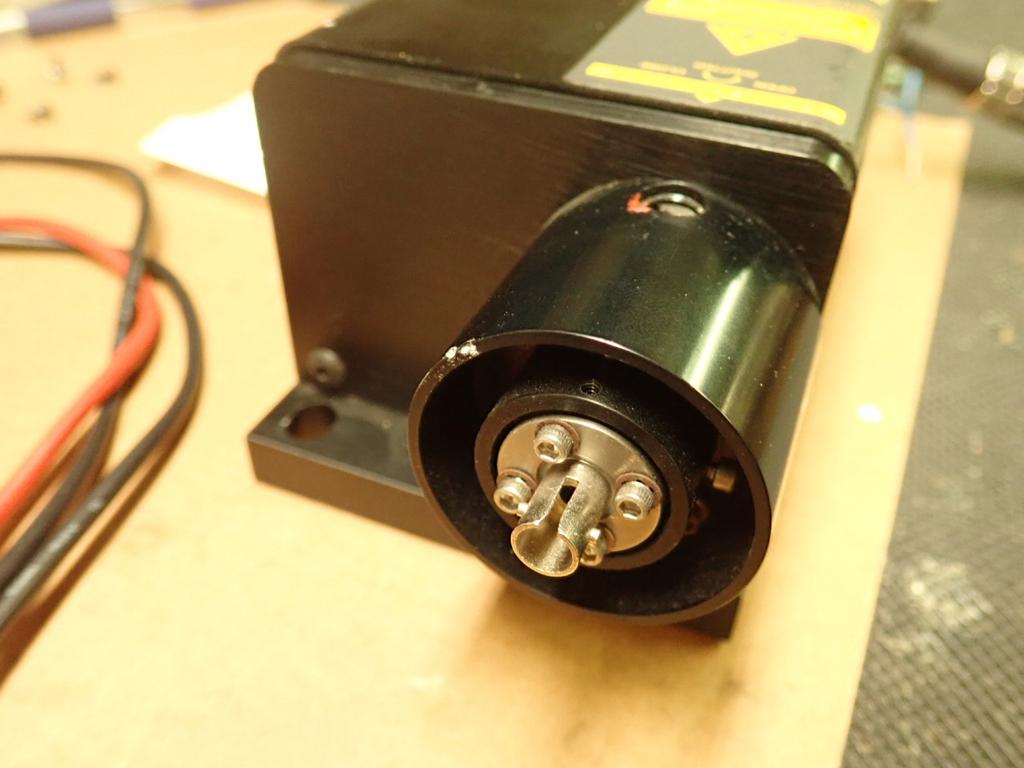

Replaced the bayonet fiber connector with F-SMA. Seems to
work okay. Might need a collimator.

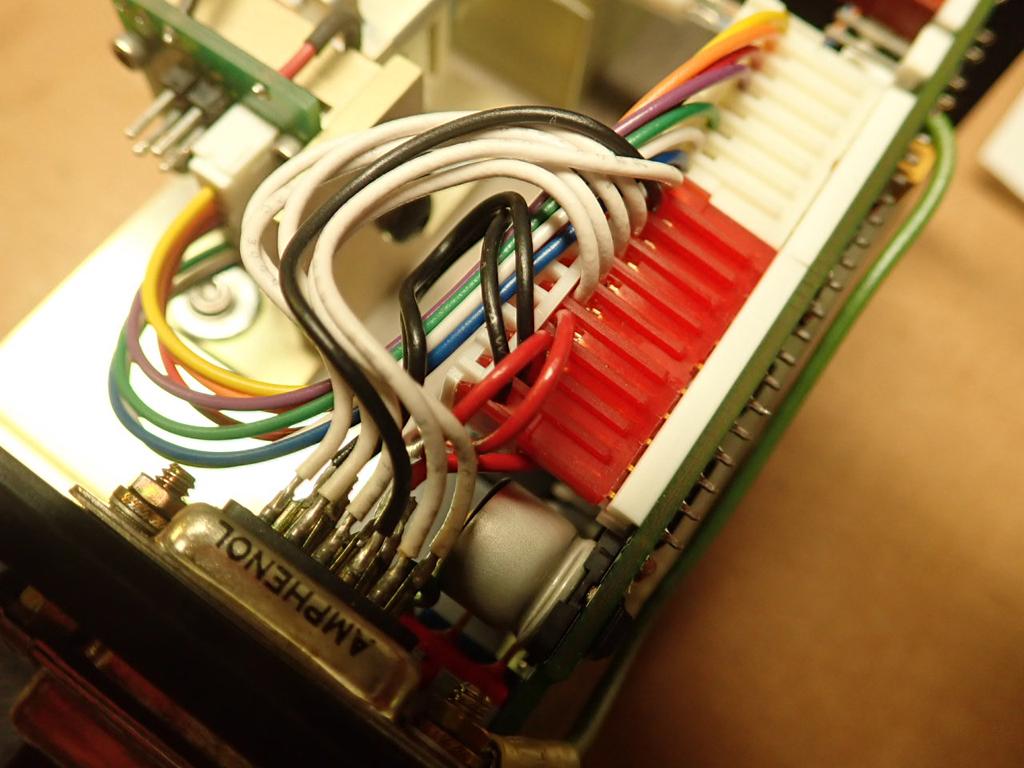

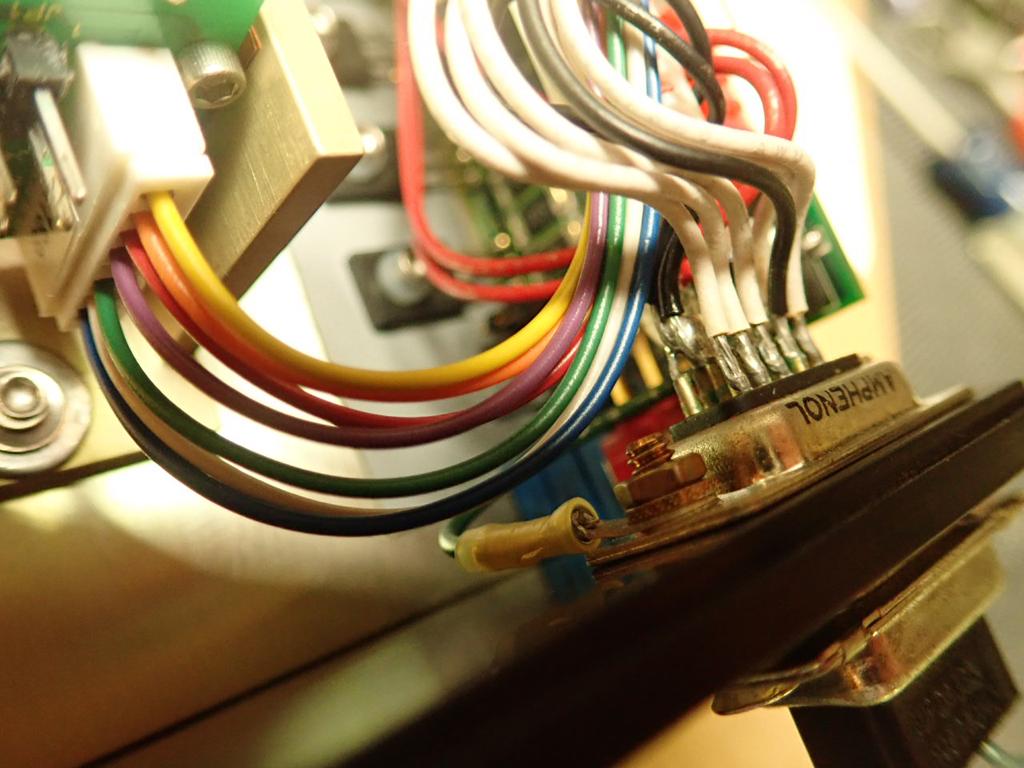

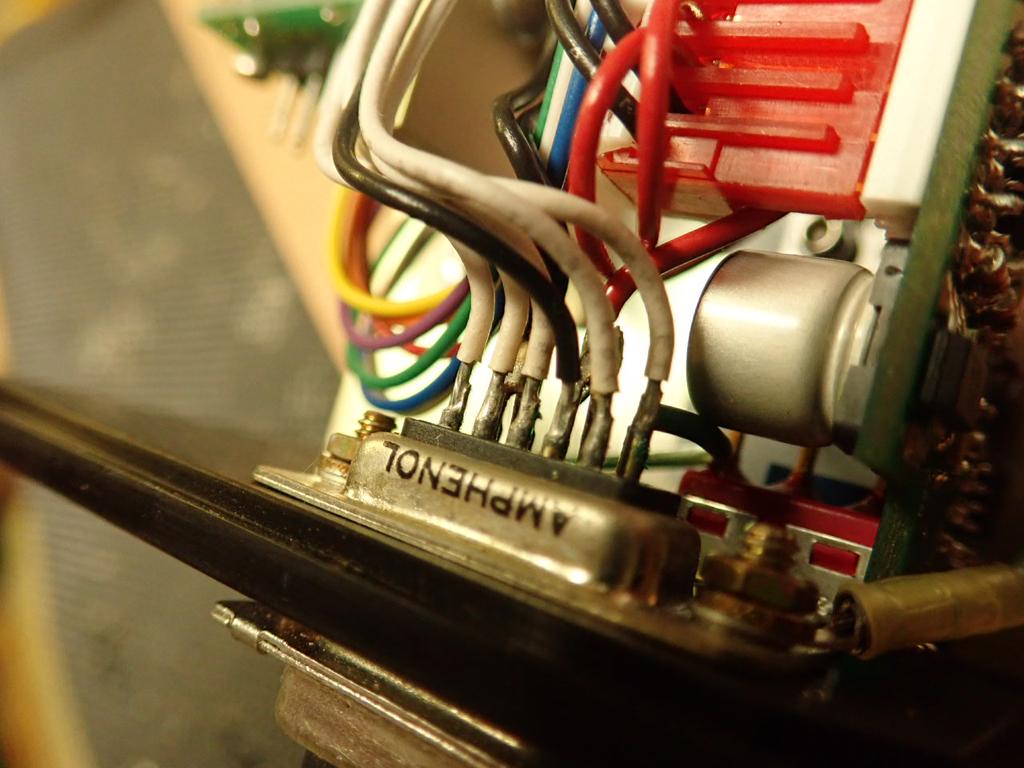

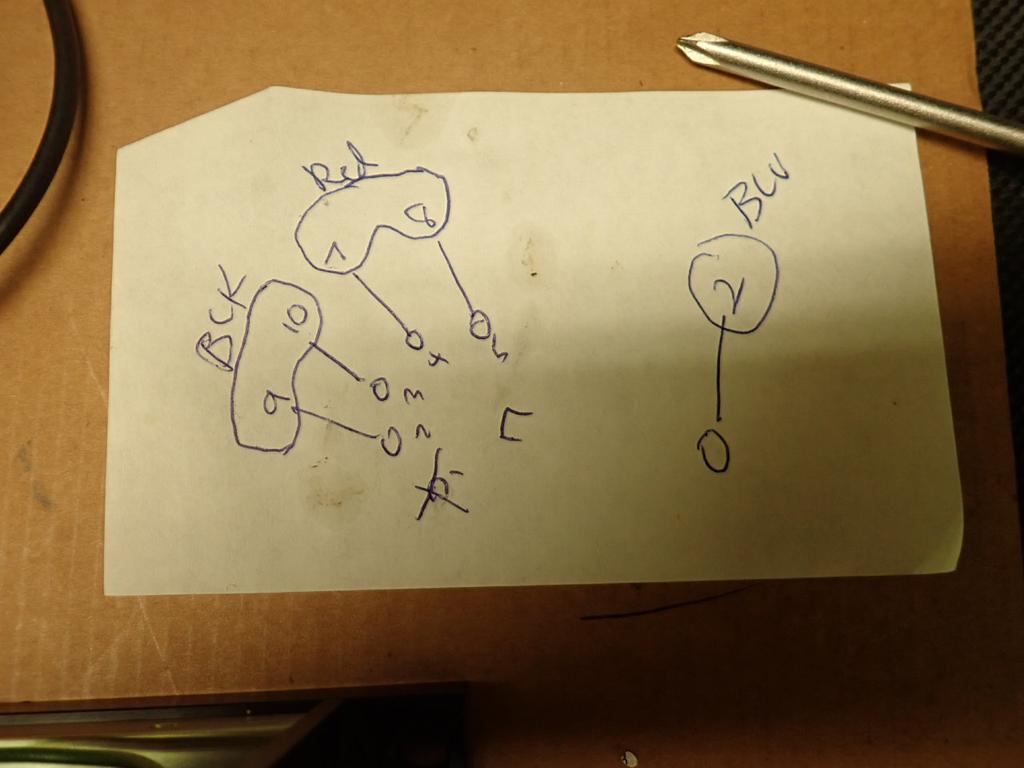

DB-15 Pins:
    1 - unknown
    2 - interlock
    3 - unknown
    4 - unknown
    5 - unknown
    6 - unknown
    7,8 - ground
    9,10 - +5V 2A
    11 -
    12 -
    13 -
    14 -
    15 -

Switch:
   on - off

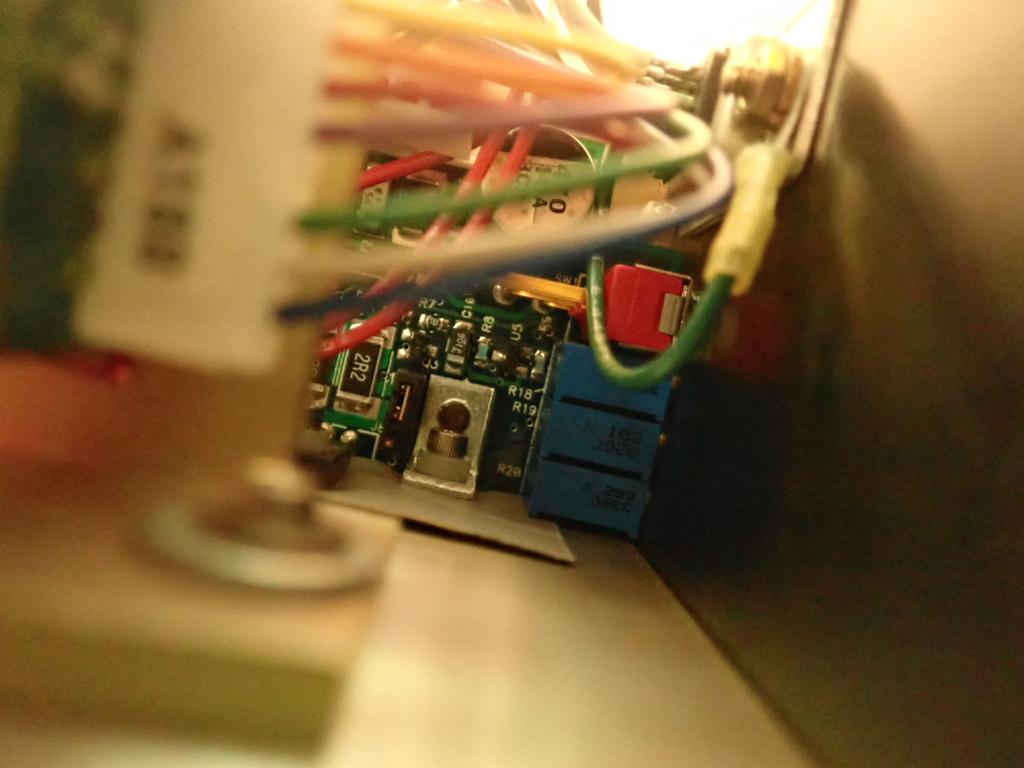

Trimpots:
    current
    power
    temperature

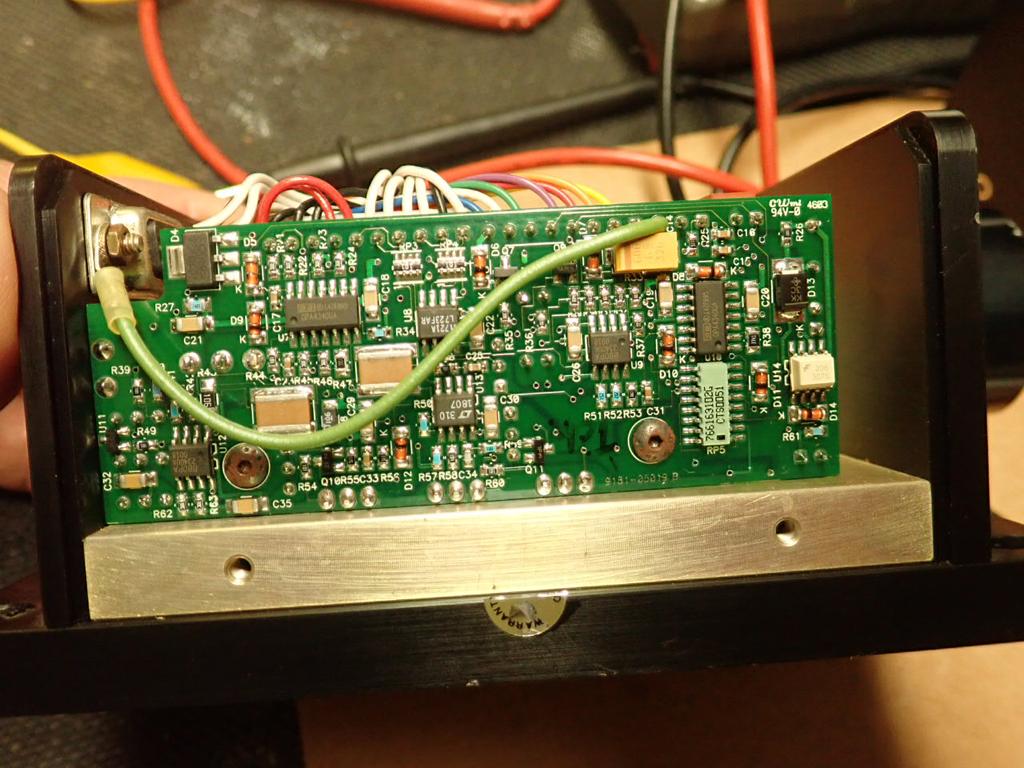

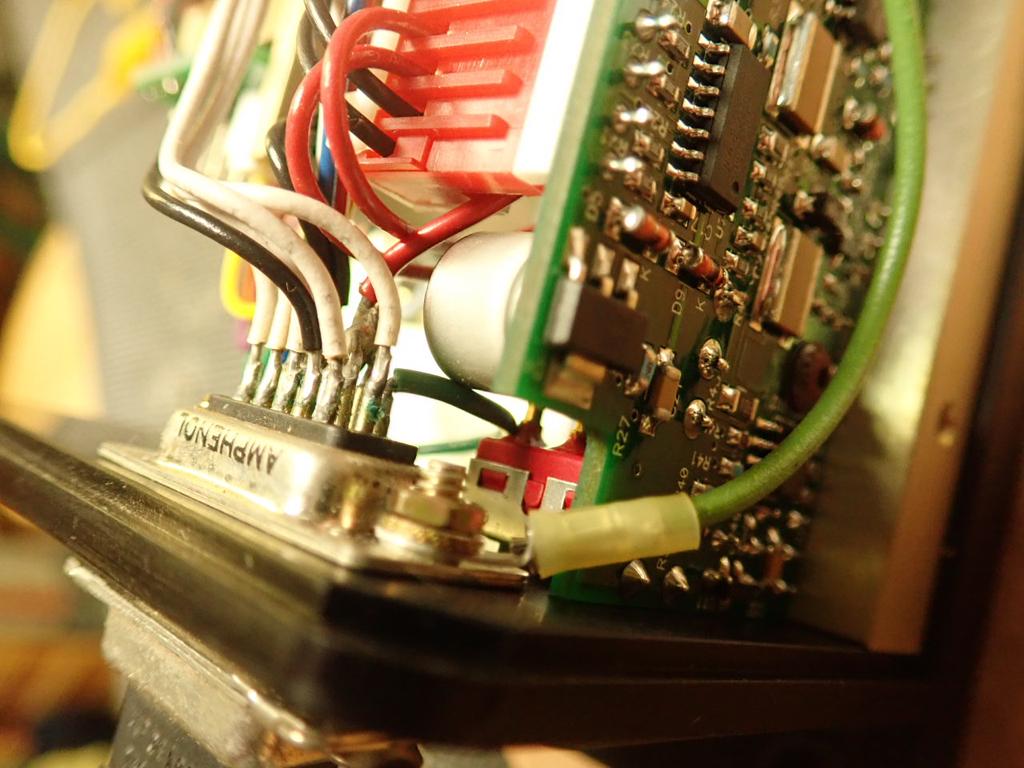

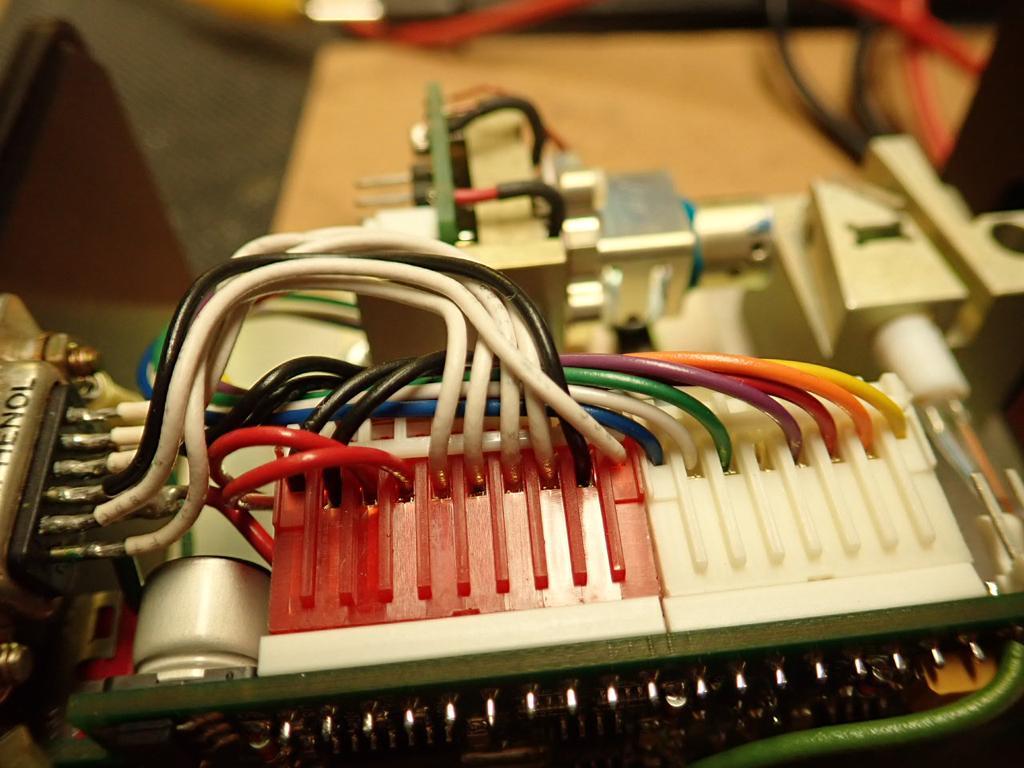

Outside face of the circuit board.

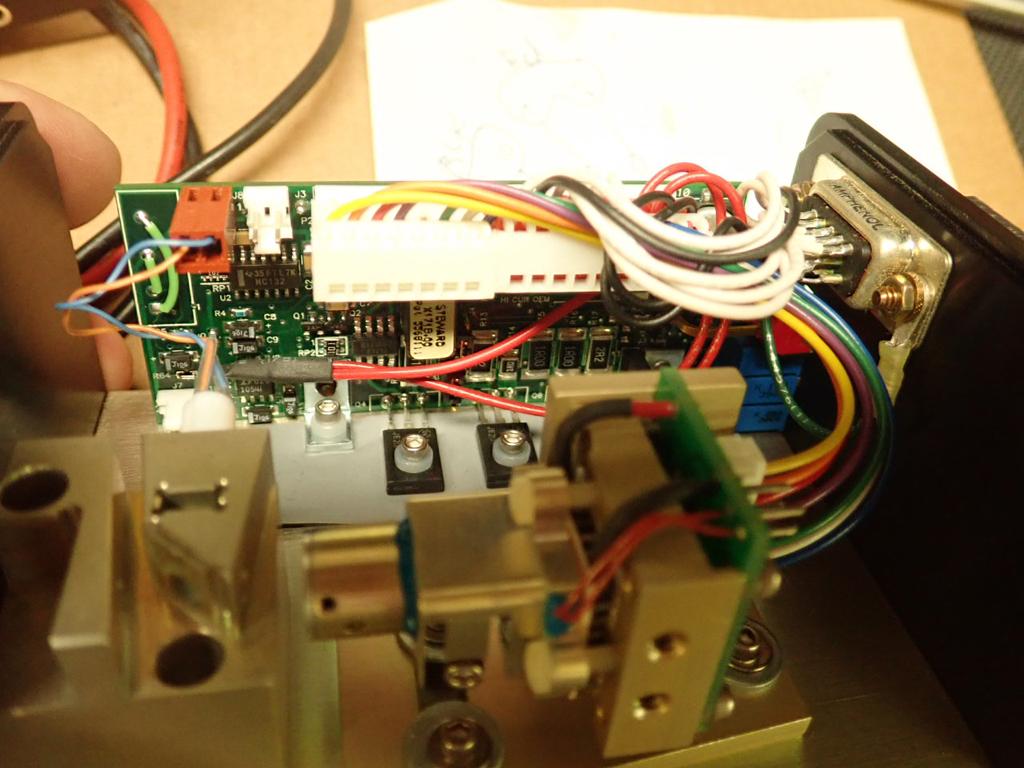

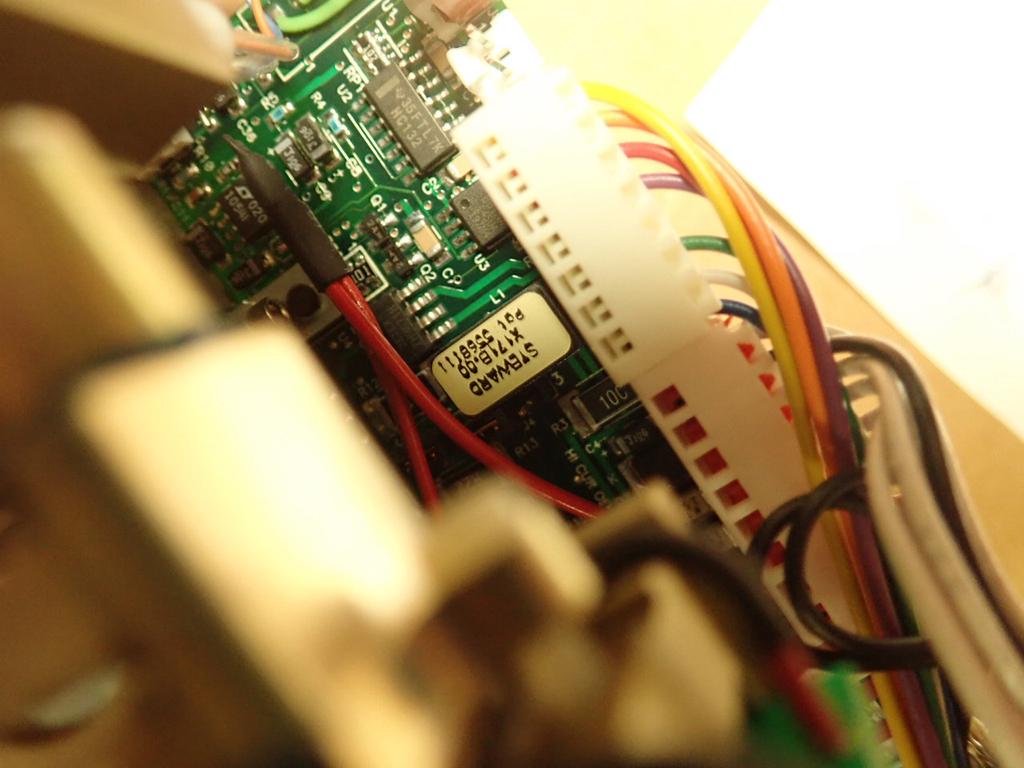

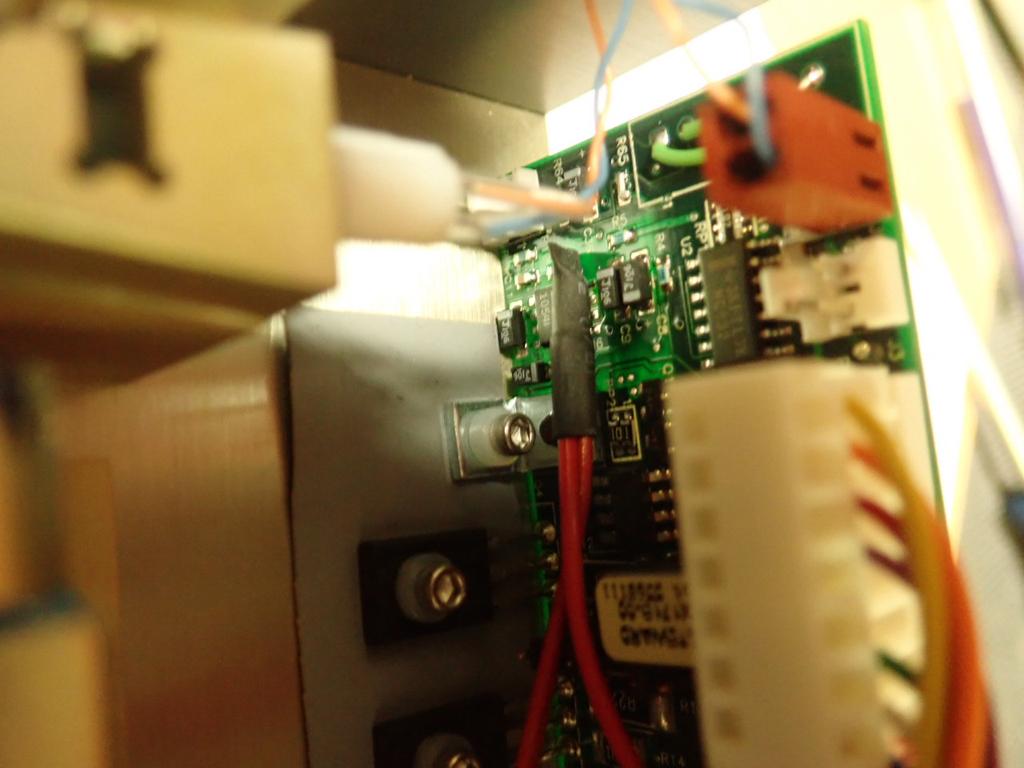

Orange and blue wires from feedback sensor.

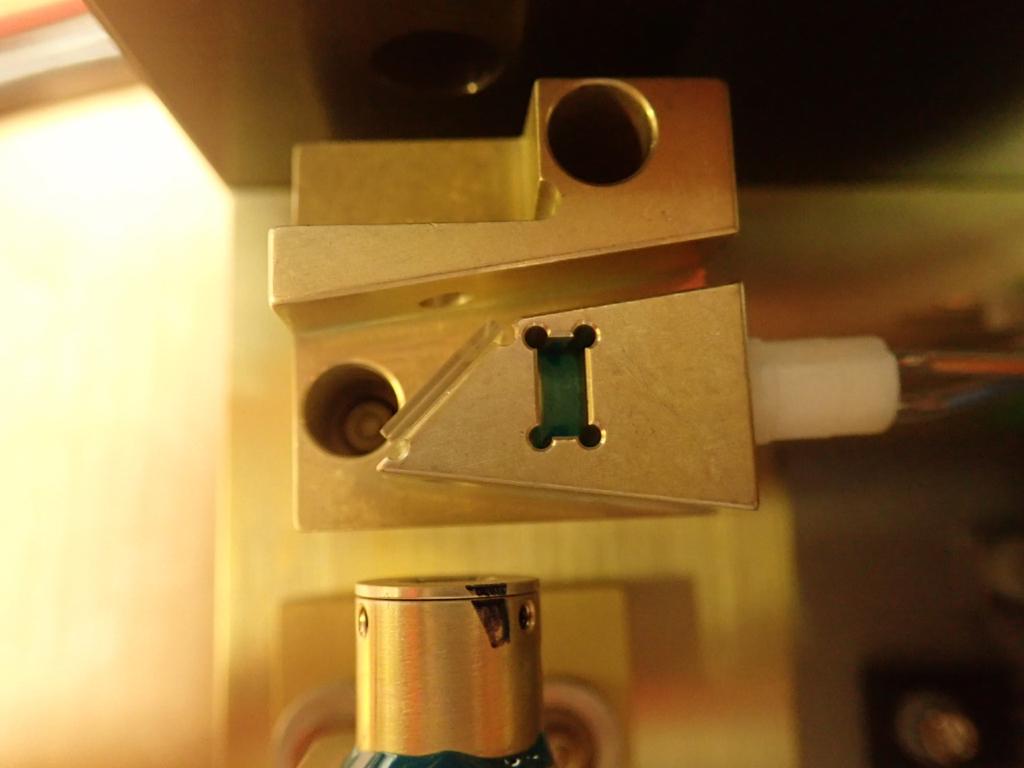

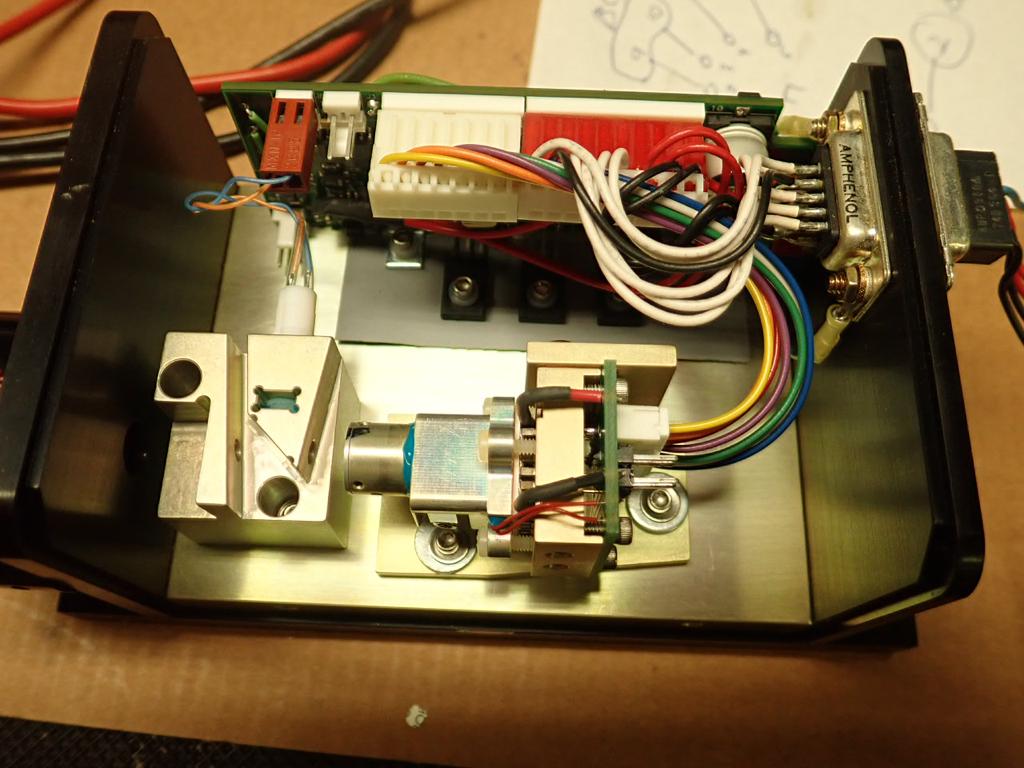

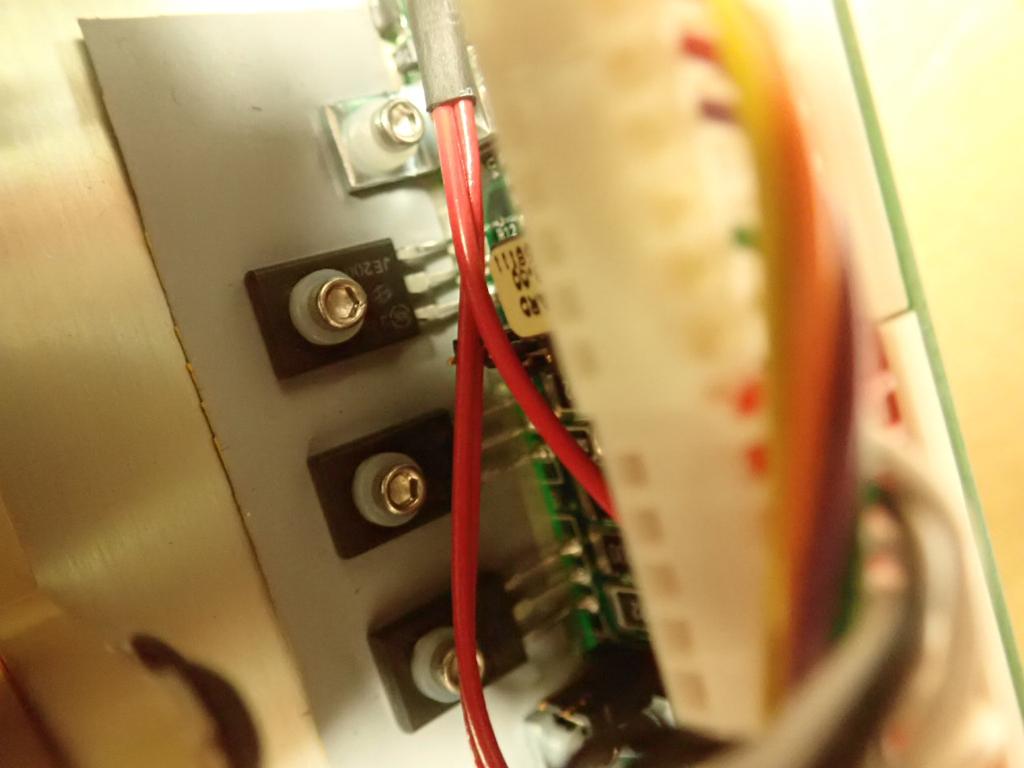

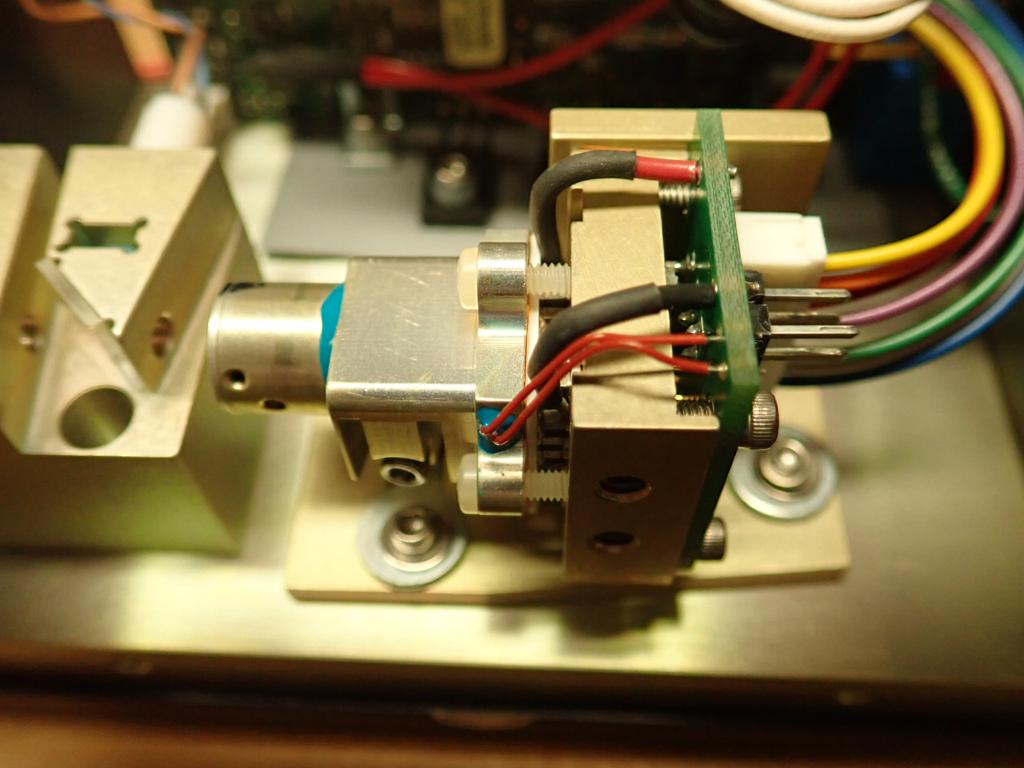

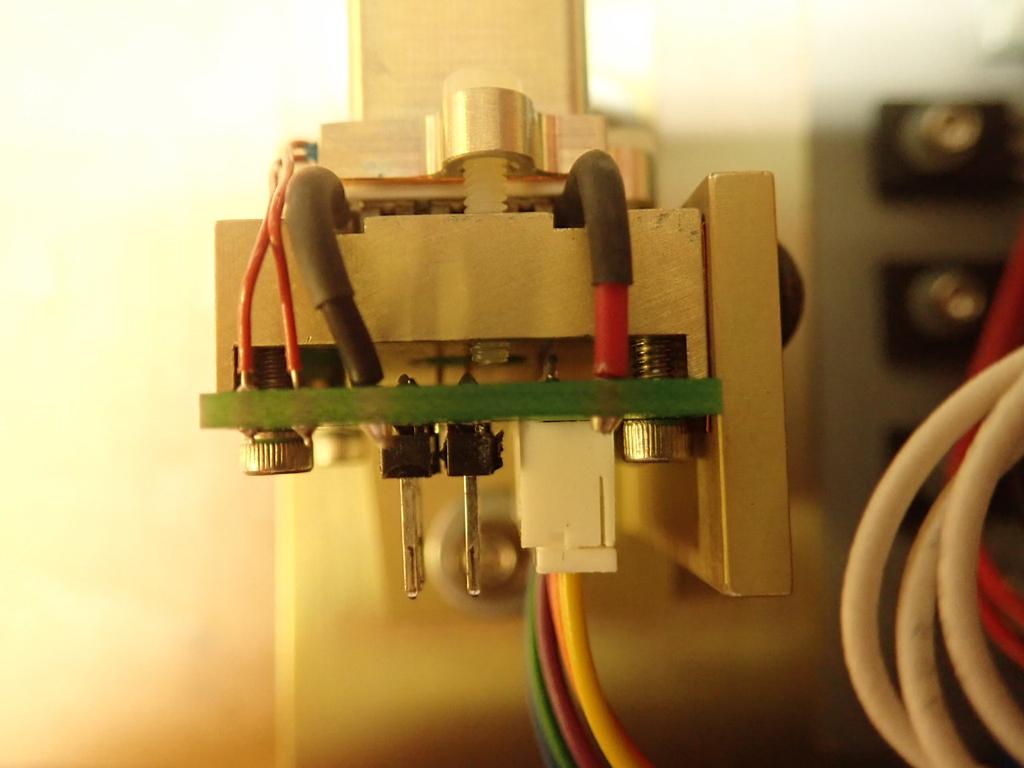

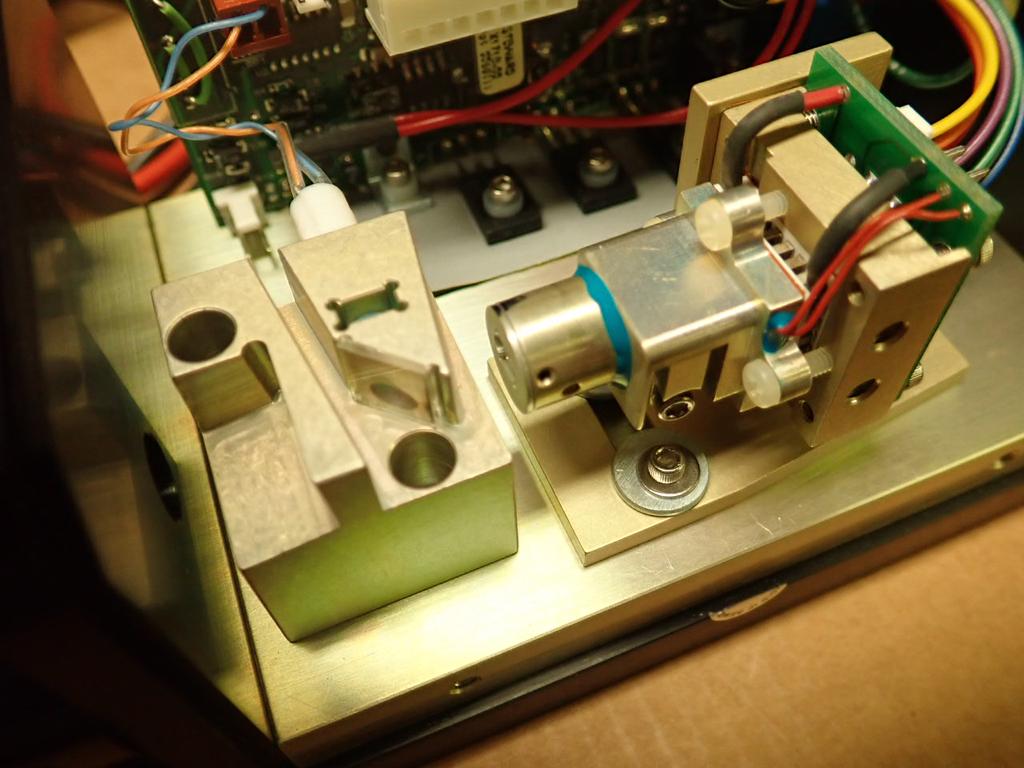

The Peltier TEC (thick red and black wires)
is clamped between the pump diode block and
the heatsink by white nylon bolts.

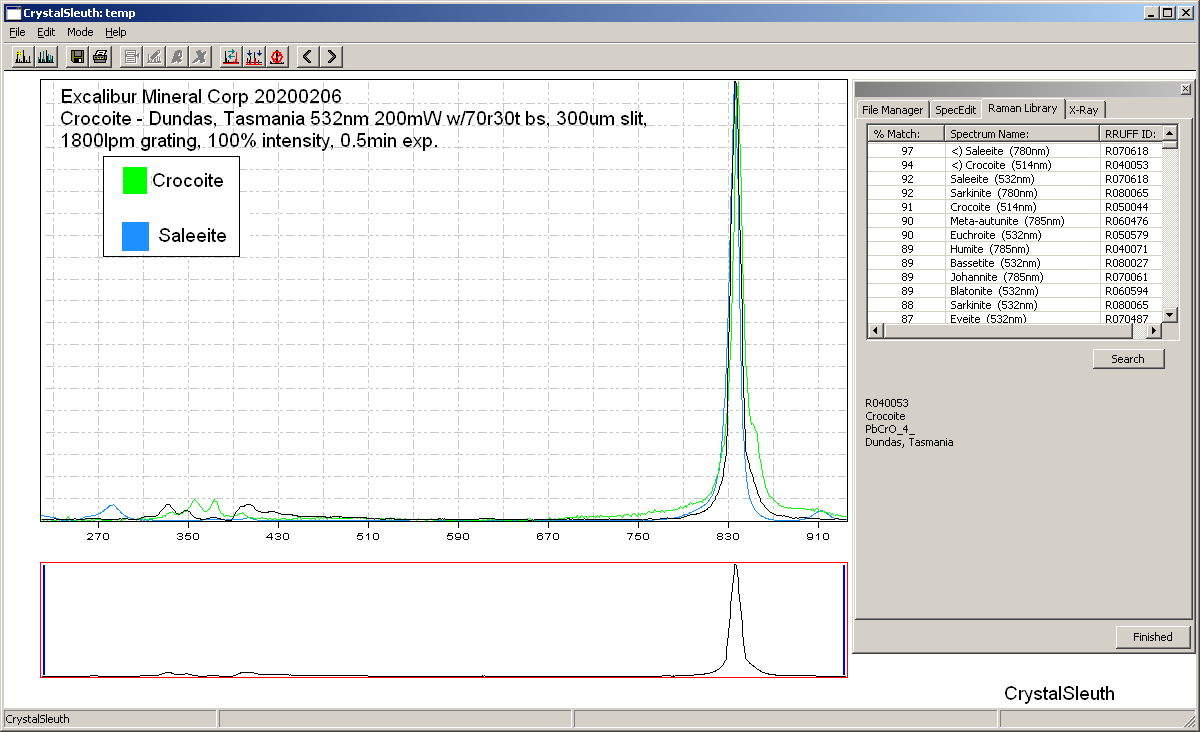

Test specimen: crocoite from Tasmania.
